SEMI-AUTOMATIC BOTTLE BLOWING MACHINERY

  • UPL-12IV
1
/

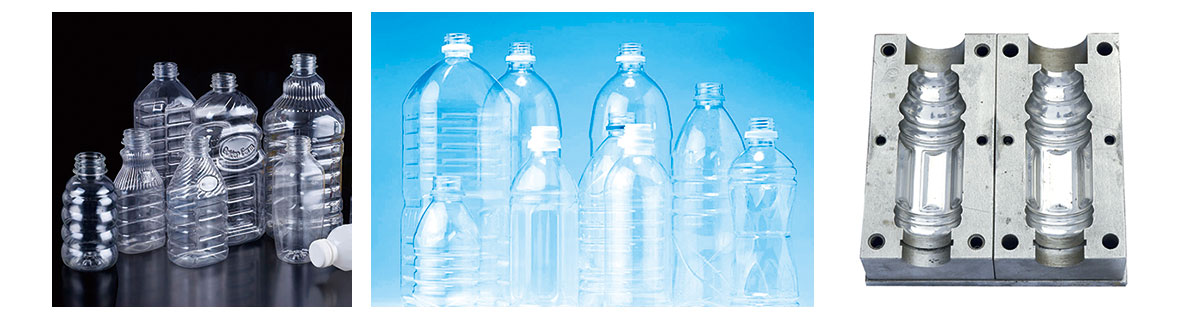

SAMPLES

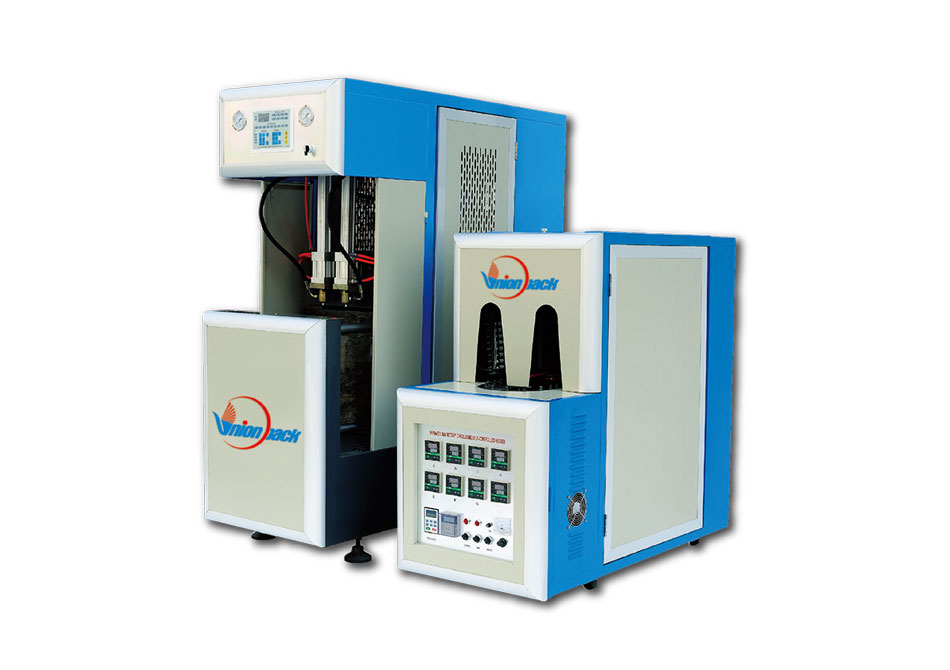

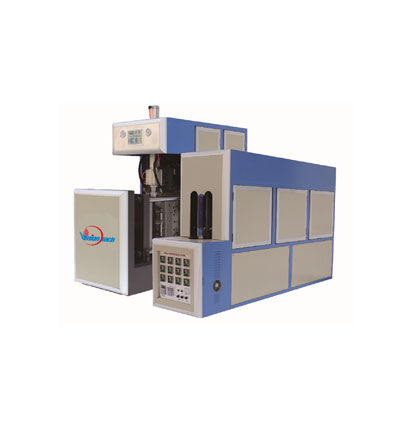

UPL-12IV SEMI-AUTOMATIC BOTTLE BLOWING MACHINE

TECHNICAL SPECIFICATION

Preform Material PP, PET
Output
1 cavity
              2 cavities
Capacity
400PCS/Hour
    800PCS/Hour
Max. Bottle Volume
6L
                      2L
Clamping Force 100ton
Working Pressure 0.8-1.0Mpa
Blowing Air Pressure 1.5-3.0Mpa
Heating Power 12KW
Voltage (3 phase) (1 phase) 380V & 220V (Frequency: 50-60HZ)
Size of Main Machine (L.W.H) 2000X700X1700mm
Size of Oven (L.W.H) 1400X680X1350mm
Total Weight 700+200 kg

main feature

CONTROL SYSTEM:

PLC—SIEMENS (Germany)

ELECTRIC VALVE—FESTO (Germany)

CYLINDER—FESTO or AIRTAC (TAIWAN)

SIGNAL SWITCH—OMRON (Japan)

AVAILABLE OPTIONS

Accessories for Blowing Machine

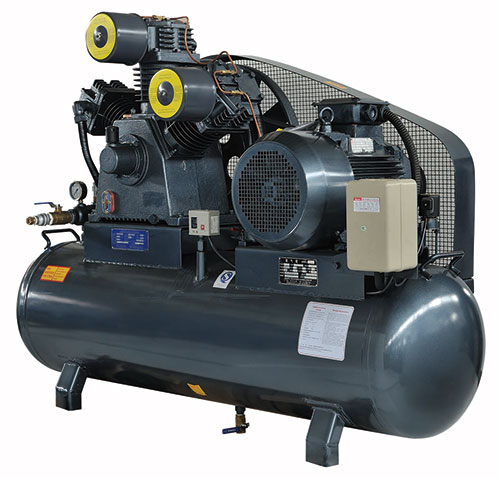

Air Compressor (High & Low Pressure)

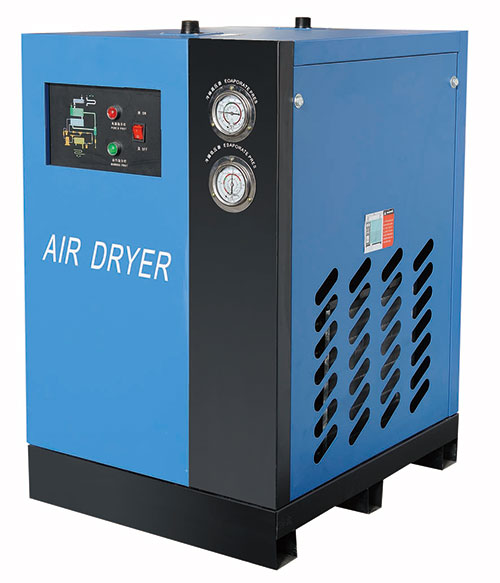

Freeze Drier

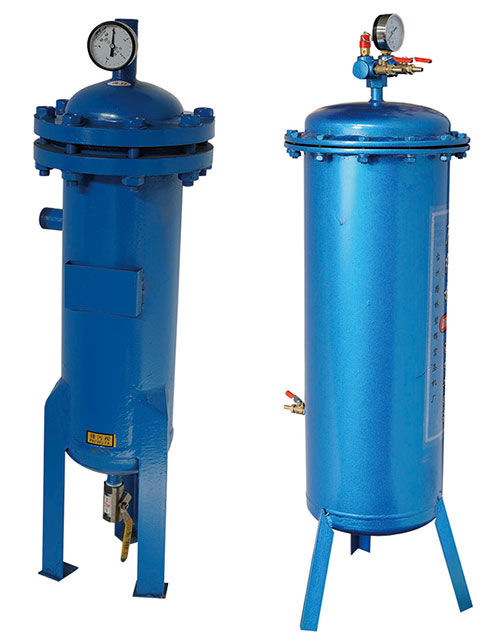

Filter (High & Low Pressure)

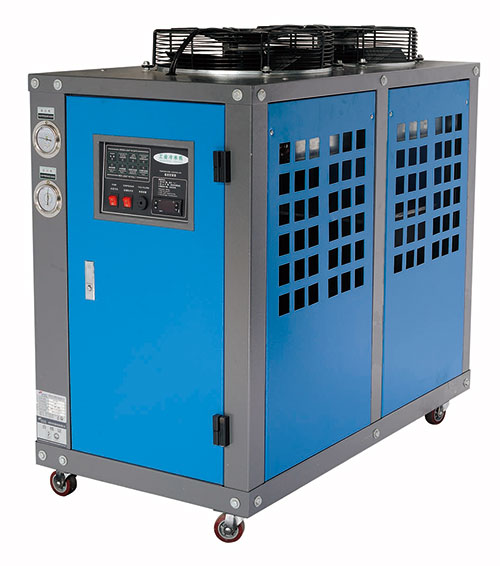

Water Chiller

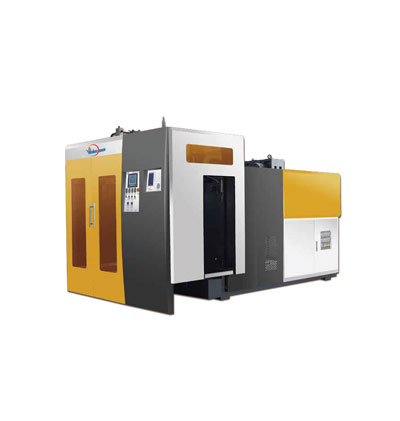

Recommended Products
