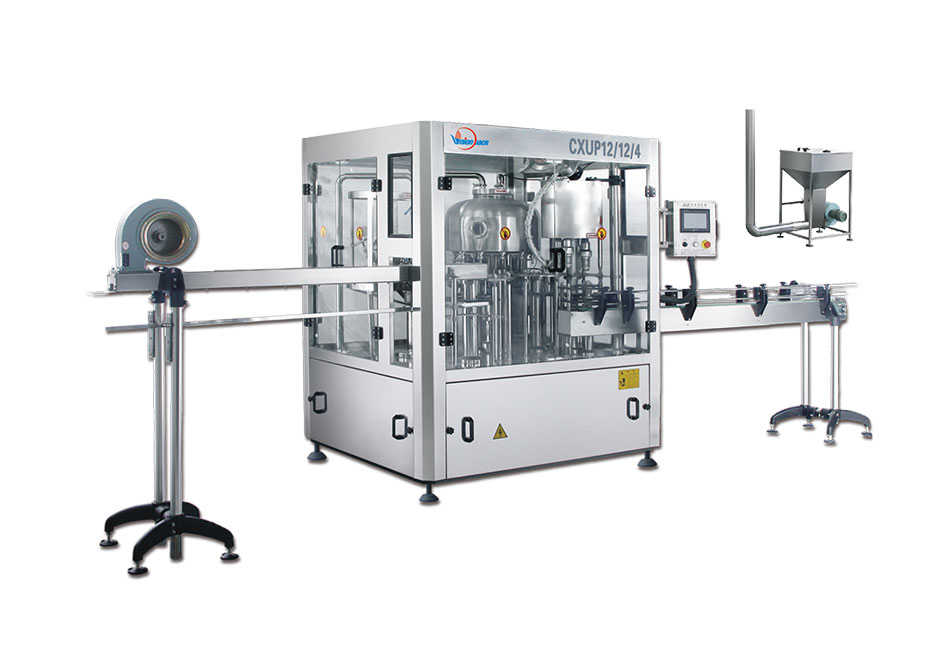

AUTOMATIC WASHING & FILLING & CAPPING 3-IN-1 MACHINERY

  • CXUP12-12-4
1
/

SAMPLES

CXUP18-18-6 AUTOMATIC WASHING & FILLING & CAPPING 3-IN-1 MACHINE

TECHNICAL SPECIFICATION

MODEL CXUP18-18-6 CXUP16-16-6 CXUP12-12-4 CXUP8-8-3
Washing Heads 18 16 12 8
Filling Heads 18 16 12 8
Capping Heads  6  6  4 3
Production Capacity (For 500ml) 8000b/h 6000b/h 3000b/h 2000b/h
Filling Range 250—1500ml 250—2000ml 250—1500ml 250—1500ml
Bottle Range Dia.: φ50mm~φ90mm;  Height: 150mm~290mm
Motor Power 3kw 3kw 2.2kw 1.5kw

Note:

1)The CXUP series are used for purified water and mineral water in PET bottle.

2)If there is any bigger volume inquiry, we can modify the standard model to match with it.

3)We also have machines with more filling heads (like 24, 32 or 40) to realize the faster production capacity (12000b/h—18000b/h).

AVAILABLE OPTIONS

1) The DXUP series are used for carbonated soft drink in PET bottle. Production capacity: 5000b/h—36000b/h

2) The RXUP series are used for 95℃ hot filling requirement. Production capacity: 8000b/h—15000b/h
