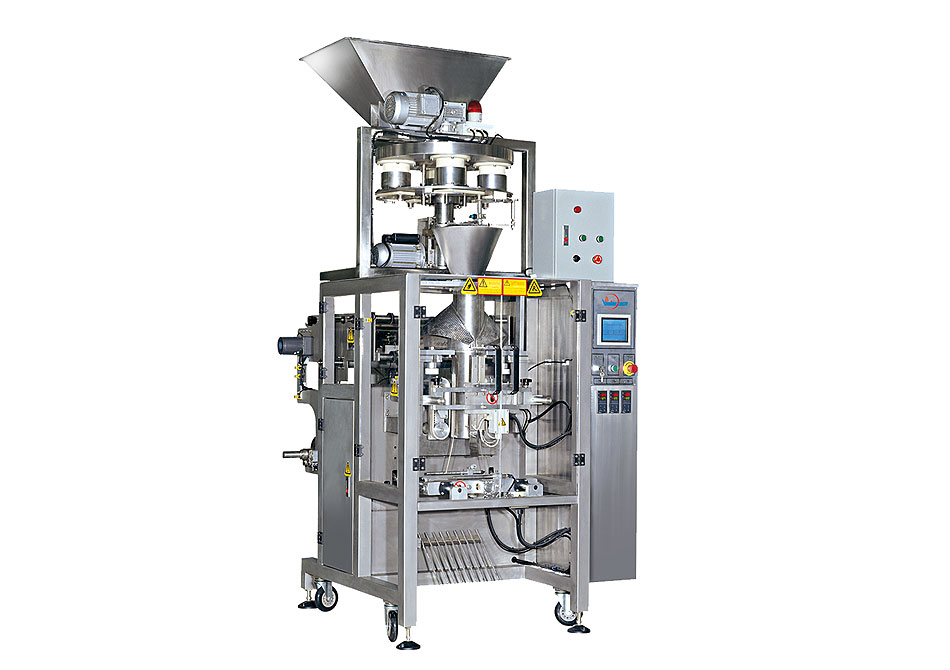

UPK SERIES APPLICATIONS
It's widely used to pack any loose, non-cohesive, granule and other small piece products of the food, pharmaceutical and chemical industries such as sugar, salt, rice, coffee, tea, peanuts, bean, fruit grain, seed, monosodium glutamate, desiccant, sunflower, etc.

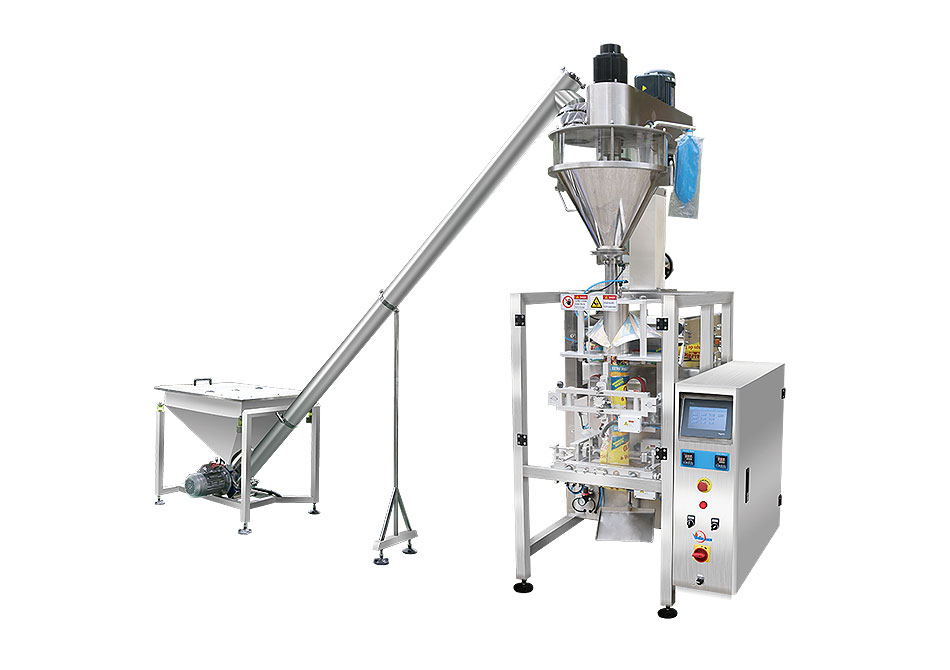

UPF SERIES APPLICATIONS
It is applicable for free flow, non free flow powder or granules mateial in the field of the food, chemical & cosmetics, phamaceutical industries such as spices, milk powder, flour, chili powder, cornstarch, bean powder, medicine powder, coffee powder, etc.
| Model | UPK/F/Y-420 | UPK/F/Y-520 | UPK/F/Y-720 |
| Film Width | Max 420mm | Max 520mm | Max 720mm |
| Bag Size |
L: 60-300mm; W: 65-200mm |
L: 80-400mm; W: 90-250mm |
L: 100-500mm; W: 115-350mm |
| Speed | 15-50 bags/min | 15-50 bags/min | 10-35 bags/min |
| Capacity | 10-1000ml | 100-2000ml | 1000-5000ml |
| Power | 220V, 50-60Hz, 2.2kw | 220V, 50-60Hz, 2.5kw | 220V, 50-60Hz, 3kw |
|
PLC and touch screen control. |
Date printer and feed system synchronous working together. |
|
Photo-eyes automatic track marks. |
Fast bag-former change, no tools required. |
|
The parts contacting material are stainless steel. |
Full stainless steel machines are optional. |
|
Economic, High speed and Ultra-large machines can be chosen. |
|
|
★ PE single film sealing device ★ Tear notch ★ Air expeller ★ Gas injection (Air or Nitrogen) ★ Vacuum device ★ Material stopper ★ Hole punch device ★ Gusseted-bag device ★ Hot pressing for 4 edges of gusseted standing bag ★ Bag support ★ Static eliminator ★ Automatic film tracking device |
