The BR series belt weighing & packing line systems are designed for packing 5-30kg of loose materials in the field of biopharmaceutical, food, farm chemical & fertilizer, building materials, ceramics, chemical engineering like rice, sugar, beans, tea, peanuts, seeds, cereals, drug ingredients, fodder, charcoal, flower foil, plastics grains, etc.
| Model | UPR1000 | UPR1200 |
| Film Width | Max. 1000mm | Max. 1200mm |
| Bag Size | L: 100-600mm; W: 240-480mm | L: 100-800mm; W: 290-580mm |
| Speed | 5-25bags/min | 1-15bags/min |
| Air requests | 0.7M3/min, 0.6MPa | 0.8M3/min, 0.6MPa |
| Power supply | 220V, 50/60Hz, 5KW | 220V, 50/60Hz, 6KW |
| Dimension | 2170*1780*2740mm | 2170*1780*3040mm |
| Bag Material | plated aluminum/polyethylene；BOPP/polyethylene；nylon/polyethylene; PE film (machine should be changed to the PE sealing system) | |
| Sealing style | Pillow Bag / Gusseted Bag / Bag with hole | |

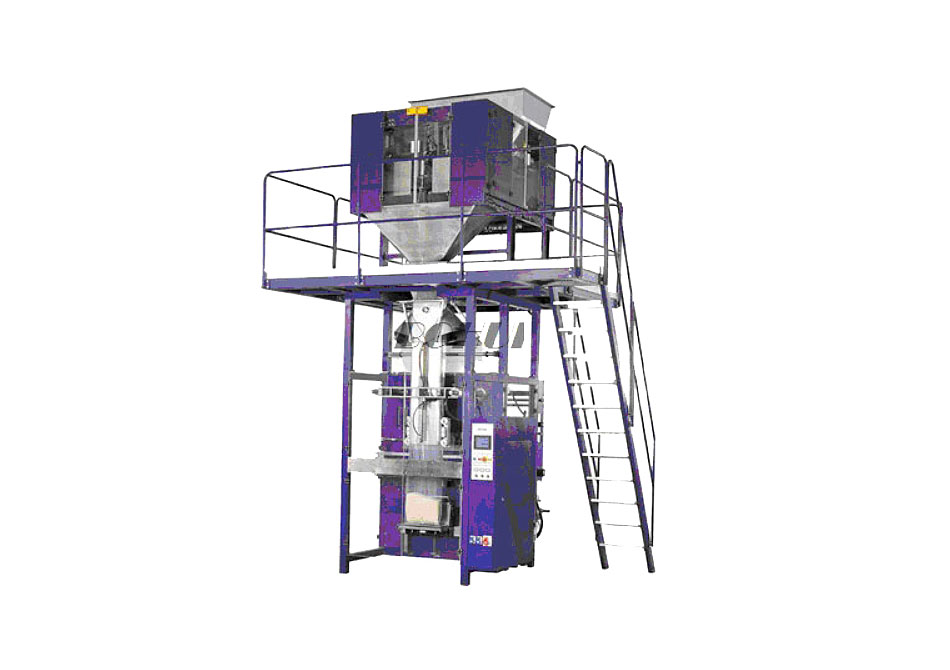

Full set machine including:
● Belt weighing scale machine
● Working platform
● Vertical form automatic packaging machine
